Track Spot XTO10

Track Spot XTO10

10W Compact Track Spot
Options

  • Track mounted compact LED spotlight distinctively known for its wide range of configurable accessories
  • Powder coated body with anodised heatsink provides optimal thermal management ensuring high output and long lifespan
  • Adjustable design with 350° rotation and 100° tilt angle
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with a 3-circuit track adapter and an integral driver
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var MB
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀60 X 136 (H) mm
Weight523 g
Tilt Angle100°
Rotation350°

General Characteristics

Family
Track Spot
Surface
Ceiling
Mounting
Track Mounted
Ingress ProtectionIP20

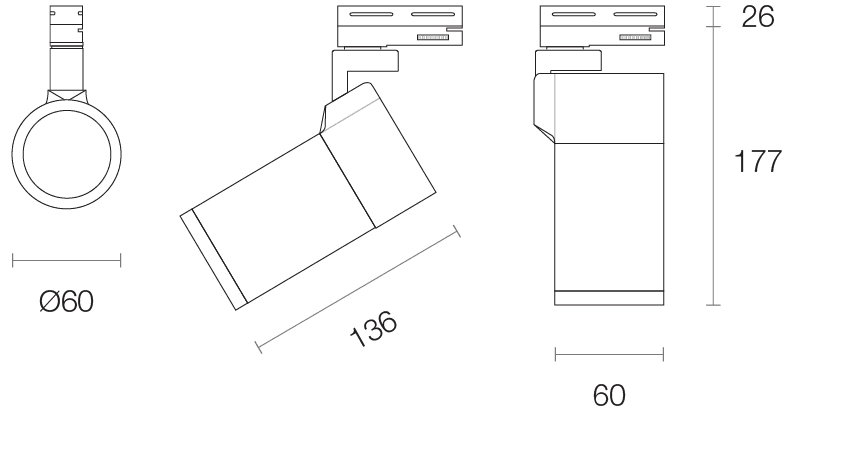

Dimensions (mm)

XTO10 2x

Technical Characteristics*

LED Power10W
LED TypeCOB
LED Lumen Output*1450 lm
Luminous Flux*1047 lm
Efficacy*89.49 lm/W
Colour DeviationSDCM ≤2
Lifetime50,000 hours (L80)
System Power11.7W Typical
Driver ModelTrend 150415-250 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
