Flexiled XF24144

Flexiled XF24144

25W/m 24V DC Flexible Strip

  • Flexible LED strip using high output double row LEDs with a close pitch of 120 LEDs per meter for reduced spotting effects
  • Available in reels up to 12 metres with a cutting interval of 66.5 mm
  • Supplied with 3M adhesive backing for quick and easy installation
  • CRI 90+ available in 2700K, 3000K, 3500K, 4000K and 5000K CCT options
  • Can be paired with a range of extrusion profiles to suit a variety of lighting applications
Product Standards
Icons Technical RGB Voltage24 V Colour
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI90
Icon IP10
Icons Technical RGB Australian Red

Physical Characteristics LED Strip

Dimensions1000 (L) X 30 (W) X 2 (H) mm
Max Reel Length12000 mm*
* Custom Lengths Available

General Characteristics

Surface Mounted
Ingress ProtectionIP10

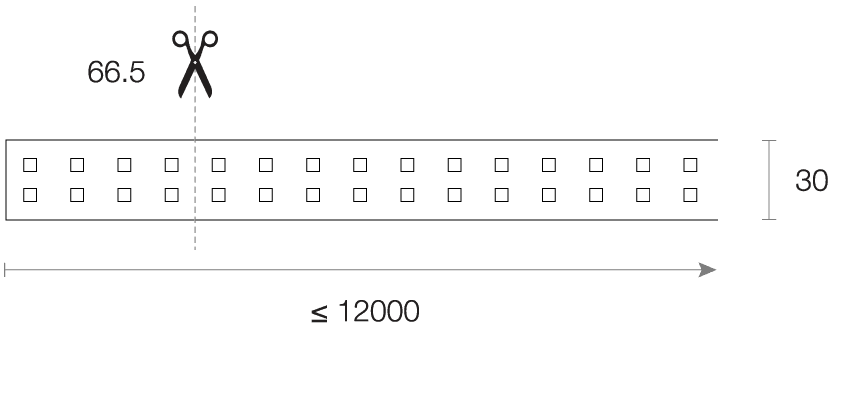

Dimensions (mm)

XF24144 2x

Technical Characteristics*

Input Voltage24V DC
LED Power25W per metre
LED Lumen Output*3900 lm
Colour DeviationSDCM ≤ 3
Lifetime50,000 hrs
LED Pitch120 LEDs per meter
LED Cutting Increment66.5 mm (8 LEDs)
BackingAdhesive Backing 3M 300LSE
Cooper Content2oz PCB
Driver ModelTrend 150310 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
Applicable Extrusions for Flexiled XF24144
