Lowbay XPU150

Lowbay XPU150

150W IP65 Rated Low Glare Lowbay
Options

  • Low bay manufactured with a robust integrated aluminium heatsink, industrial rated silicone gaskets and stainless steel fixtures
  • Designed with honeycomb reflector design that improves light performance while reducing glare
  • CRI 90+ available in 4000K and 5000K CCT options
  • Supplied with an integral IP65 rated driver
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP65
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀320 X 177 (H) mm
Max Suspension Height3000mm H
Weight5300 g

General Characteristics

Family
Lowbay
Surface
Ceiling
Mounting
Suspended
Ingress ProtectionIP65

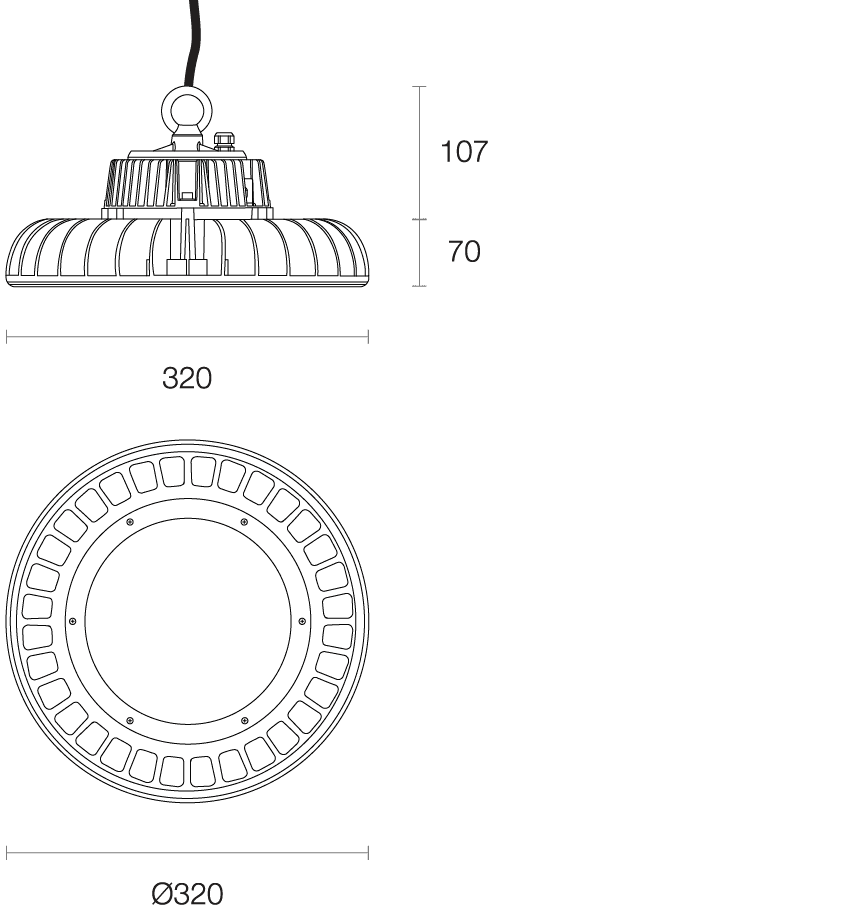

Dimensions (mm)

XPU150 2x

Technical Characteristics*

LED Power150W
LED TypeCOB
LED Lumen Output*19850 lm
Luminous Flux*14784 lm
Efficacy*91.83 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L70)
System Power161W Typical
Driver ModelTrend 150063 (Non-dim)
Sensor
Microwave Motion Sensor
* Based on: 4000K, CRI 90+ Standard
