Midiled XRD25

Midiled XRD25

24W Recessed Adjustable Pull-out Downlight
Options

  • Recessed adjustable LED downlight with pull-out gimble design in compact size
  • Featured with 355° rotation and 90° tilting capabilities, allowing for directional adjustment in a variety of lighting applications
  • Configurable with optional coloured inserts, enabling seamless integration with any design aesthetic
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB Insert White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var MB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀140 X 140 (H) mm
Weight850 g
Tilt Angle90°
Rotation355°
CutoutCircle - 125 mm
Spring Height42 mm

General Characteristics

Family
Midiled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

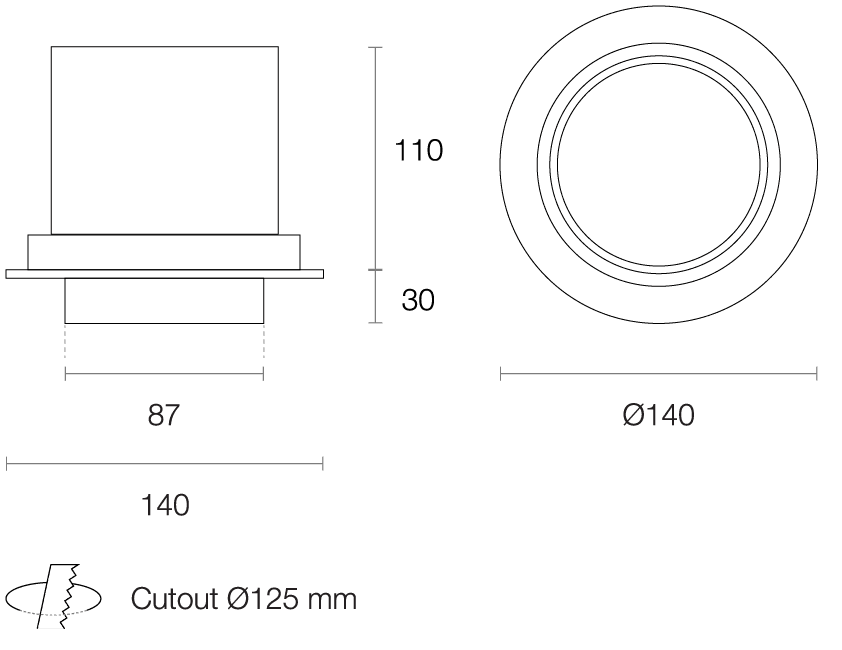

Dimensions (mm)

XRD25 2x

Technical Characteristics*

LED Power24W
LED TypeCOB
LED Lumen Output*3557 lm
Luminous Flux*2160 lm
Efficacy*84.38 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80)
System Power25.6W Typical
Driver ModelTrend 150020-700 (L&T)
* Based on: 4000K, CRI 90+ Standard
