Multiled DTL12

Multiled DTL12

12W Recessed Tri-colour Downlight
Options

  • Recessed SMD LED fixed downlight with a slim design and stepped opal polycarbonate diffuser for uniform lighting distribution
  • Aluminium profile provides excellent thermal management for exceptional heat dissipation
  • An ideal lighting solution for residential and commercial applications
  • Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
  • Supplied with remote flicker free Leading & Trailing Egde dimmable driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDSMD Colour
Icons Technical RGB CCT Tech TRI Colour
Icon type CRI var CRI85
Icon type Beam Angle var WB
Icon IP54
Icons Technical RGB IC4 Grey
Icons Technical RGB Warranty3 YR Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀145 X 53 (H) mm
Weight400 g
CutoutCircle - 120 - 130 mm
Spring Height35 mm

General Characteristics

Family
Trend For Trade,
Multiled
Surface
Ceiling
Mounting
Recessed
Insulation ContactIC-4
Ingress ProtectionIP54
Warranty3 Years

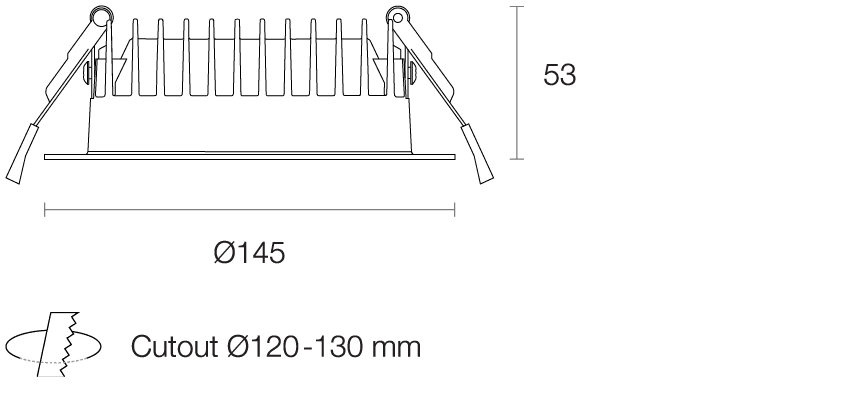

Dimensions (mm)

DTL12 2x

Technical Characteristics

LED Power12W
LED TypeSMD
LED Lumen Output*1,415 lm
Efficacy*Up to 120 lm/W
CCT TechnologyTri-colour Selectable
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L70)
System Power11.7W Typical
Driver ModelTrend DR-DTL12 (L&T)

Trend For Trade Series

Continue your search and explore the series range.

View Trend For Trade seriesArrow Right

Get in touch

Contact usArrow Right

Trend Lighting are a valued supplier of Sheridan, consistently delivering a premium full-service experience from concept design to installation with products of the highest quality. What we appreciate most about working with their team is that nothing is ever too much trouble. They continually go above and beyond to provide the best lighting solutions for our stores.

Joel Newham - Head of VM and Store Development Hanes Australasia - Sheridan Group

From the service, products, and reliability we have been nothing but happy since using Trend. The team have consistently gone above and beyond ensuring we turn around orders in tight deadlines, always making it happen.

Alexandra Klapos - Retail Project Coordinator - Billini

We are extremely happy with the work done by Trend Lighting. The lights chosen are stylish and blend well with our office whilst providing an excellent environment for our team to view fabrics and sample products.

Institchu

The lighting design provided by Trend completely transformed the space and was continuously complimented by our clients from the first day we had them up. We look forward to working with Trend for our future projects.

Ben Bottalico - Blue Group Projects

Trend Lighting collaborates with designers, architects and engineers.

We create breakthrough solutions that help reduce your costs and your carbon footprint.

OptionsConfiguration Options
Downloads

Download these files for Multiled DTL12

Product Standard DatasheetDownload
Installation GuideDownload
Photography
All files
