Platinum P12R

Platinum P12R

12W IP65 Rated Recessed Premium Downlight
Options

  • Deep recessed IP65 rated premium LED downlight known for its thin trim profile and low glare design
  • Manufactured with an aluminium body and powder coat finish
  • Injection moulded twice vacuum metalised reflector for high reflectivity and uniform beam distribution
  • Can be specified with specular dark reflector
  • CRI 94+ and CRI 98+ Optisolis available in 2700K, 3000K, 3500K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI94
Icon type Beam Angle var MB
Icon IP65
Icons Technical CMYK ICCA90 Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀92 X 120 (H) mm
Weight230 g
CutoutCircle - 78 mm
Spring Height50 mm

General Characteristics

Family
Platinum
Surface
Ceiling
Mounting
Recessed
Insulation ContactCA90
Ingress ProtectionIP65

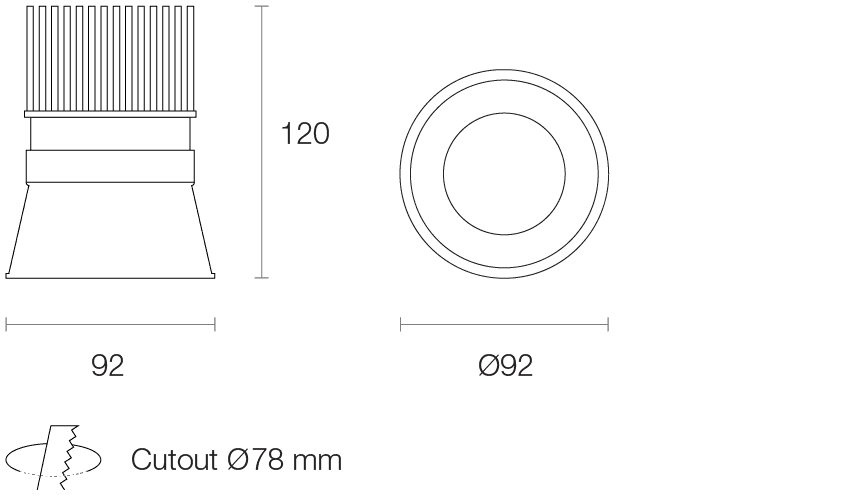

Dimensions (mm)

P12R 2x

Technical Characteristics*

LED Power10W
LED TypeCOB
LED Lumen Output*1350 lm
Luminous Flux*1072 lm
Efficacy*90.08 lm/W
Colour DeviationSDCM ≤ 2
Lifetime>60,000 hours (L80 B10)
System Power11.9W Typical
Driver ModelTrend 150218-300 (L&T) Black
* Based on: 4000K, CRI 94+ Standard
