Platinum P18J

Platinum P18J

18W Recessed Premium Downlight
Options

  • Recessed premium LED downlight characterised by its curved appearance
  • Manufactured with an aluminium body and powder coat finish
  • Injection moulded twice vacuum metalised reflector for high reflectivity and uniform beam distribution
  • Can be specified with specular dark reflector and Optisolis LED for improved colour quality
  • CRI 94+ and CRI 98+ Optisolis available in 2700K, 3000K, 3500K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI94
Icon type Beam Angle var WB
Icon IP54
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

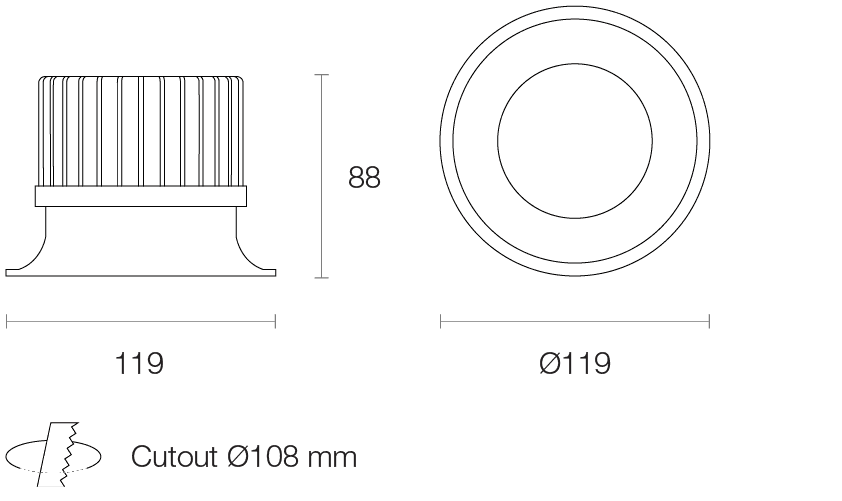

Dimensions⌀119 X 88 (H) mm
Weight490 g
CutoutCircle - 108 mm
Spring Height65 mm

General Characteristics

Family
Platinum
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP54

Dimensions (mm)

P18 J 2x

Technical Characteristics*

LED Power15W
LED TypeCOB
LED Lumen Output*2530 lm
Luminous Flux*1647 lm
Efficacy*94.11 lm/W
Colour DeviationSDCM ≤ 2
Lifetime>60,000 hours (L80 B10)
System Power17.5W Typical
Driver ModelTrend 150219-450 (L&T) Black
* Based on: 4000K, CRI 94+ Standard
