Surface XSF10

Surface XSF10

8W Surface Mounted Adjustable Downlight
Options

  • Surface mounted LED spotlight with zoomable lens, allowing for a 20° to 70° adjustment in beam angle for easy and accurate control with a smooth beam distribution
  • Fully adjustable design with 350° horizontal rotation and 90° vertical tilt, allowing for directional adjustment in a variety of lighting applications
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with an integral driver
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var ADJ
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀55 X 181 (H) mm
Weight455 g
Tilt Angle90°
Rotation350°

General Characteristics

Family
Surface
Surface
Ceiling
Mounting
Surface Mounted
Ingress ProtectionIP20

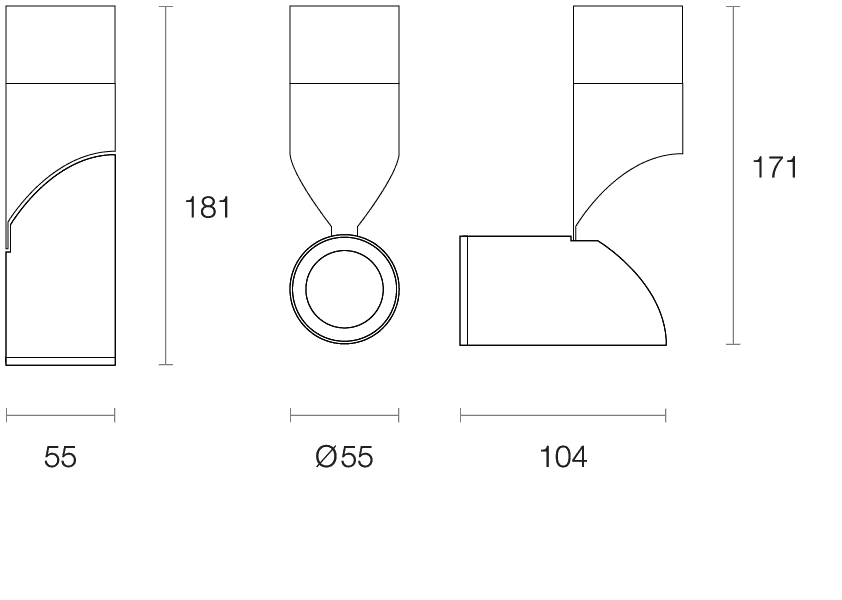

Dimensions (mm)

XSF10 2x

Technical Characteristics*

LED Power8W
LED TypeCOB
LED Lumen Output*913 lm
Luminous Flux*715 lm
Efficacy*78.57 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80)
System Power9.1W Typical
Driver ModelTrend 150419-200 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
Our featured projectsView all our ProjectsArrow Right

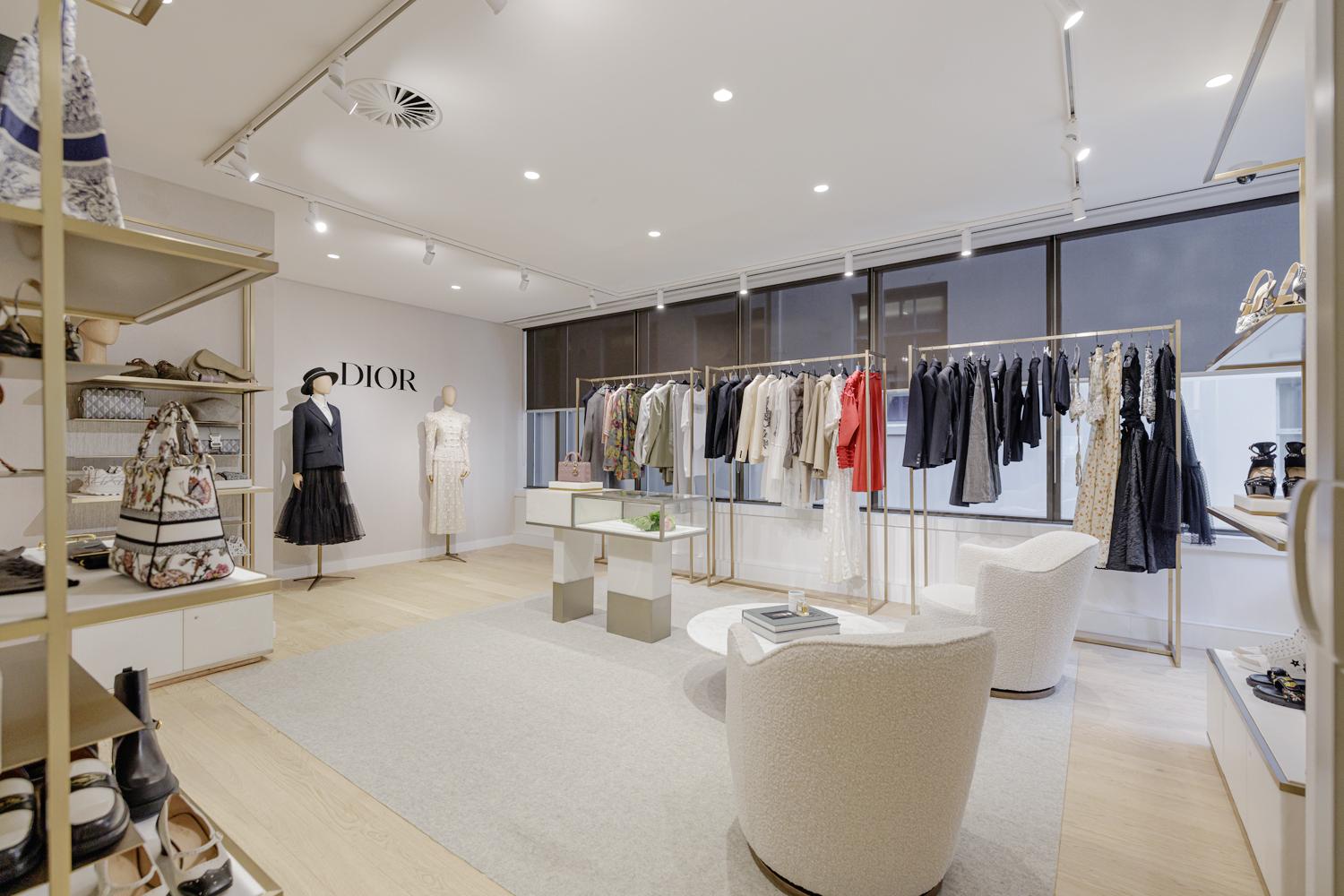

imageDior Head Office, Sydney NSW
