Maxiled XMW40

Maxiled XMW40

42W Recessed Square Downlight
Options

  • Symmetrical LED downlight featuring 4 individual COB LEDs in a square trim housing
  • Large passive heatsink provides effective thermal management ensuring high output and long lifespan
  • Standard CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 97+ and CRI 93+ VIVID available in 2700K, 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions195 (L) X 195 (W) X 85 (H) mm
Weight1870 g
CutoutSquare - 165 mm
Spring Height50 mm

General Characteristics

Family
Maxiled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

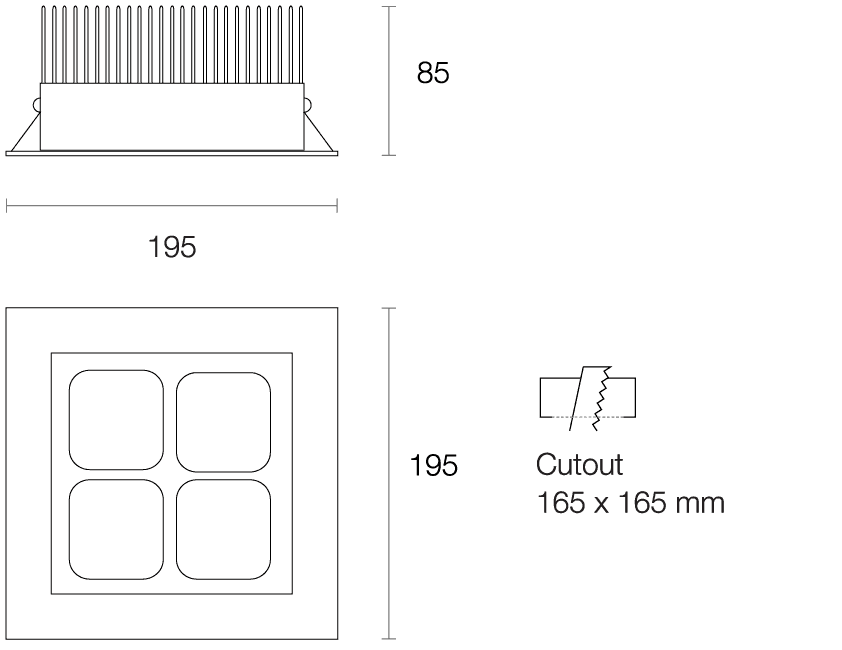

Dimensions (mm)

XMW40 2x

Technical Characteristics*

LED Power42W
LED TypeCOB
LED Lumen Output*5471 lm
Luminous Flux*4237 lm
Efficacy*90.73 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80)
System Power46.7W Typical
Driver ModelTrend 150030-300 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
