Midiled XDM30

Midiled XDM30

30W Adjustable Recessed Downlight
Options

  • Recessed adjustable LED downlight, distinctively characterised by its configurable inserts that can suit any interior scheme
  • Manufactured with an aluminium body and powder coat finish
  • Large pin fin heatsink for optimal thermal management
  • Also available in other configurations (XDM10, XDM15 and XDM25)
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB Insert White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀150 X 125 (H) mm
Weight515 g
Tilt Angle25°
CutoutCircle - 120 mm
Spring Height35 mm

General Characteristics

Family
Midiled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

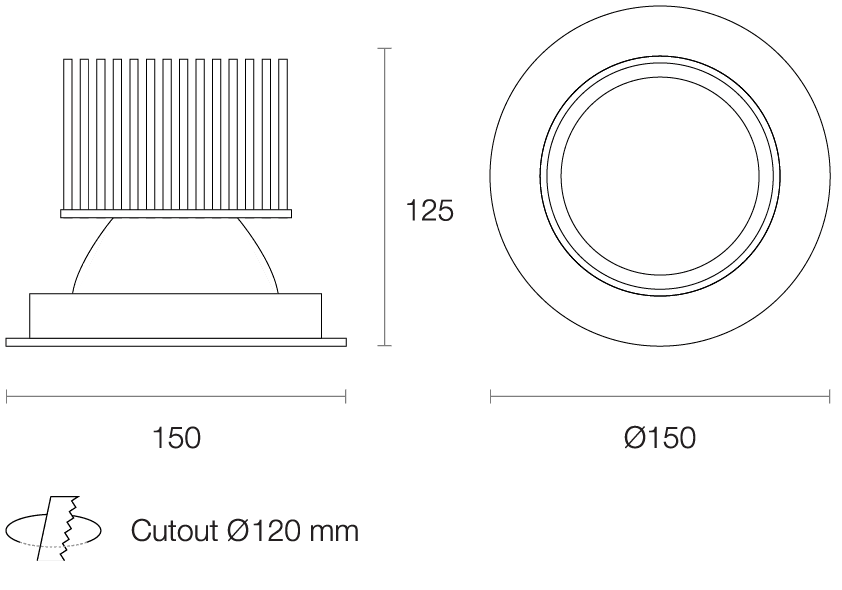

Dimensions (mm)

XDM30 2x

Technical Characteristics*

LED Power30W
LED TypeCOB
LED Lumen Output*4746 lm
Luminous Flux*2801 lm
Efficacy*88.64 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80)
System Power31.6W Typical
Driver ModelTrend 150045-850 (L&T)
* Based on: 4000K, CRI 90+ Standard

Midiled Series

Continue your search and explore the series range.

View Midiled seriesArrow Right

Get in touch

Contact usArrow Right

Trend Lighting are a valued supplier of Sheridan, consistently delivering a premium full-service experience from concept design to installation with products of the highest quality. What we appreciate most about working with their team is that nothing is ever too much trouble. They continually go above and beyond to provide the best lighting solutions for our stores.

Joel Newham - Head of VM and Store Development Hanes Australasia - Sheridan Group

From the service, products, and reliability we have been nothing but happy since using Trend. The team have consistently gone above and beyond ensuring we turn around orders in tight deadlines, always making it happen.

Alexandra Klapos - Retail Project Coordinator - Billini

We are extremely happy with the work done by Trend Lighting. The lights chosen are stylish and blend well with our office whilst providing an excellent environment for our team to view fabrics and sample products.

Institchu

The lighting design provided by Trend completely transformed the space and was continuously complimented by our clients from the first day we had them up. We look forward to working with Trend for our future projects.

Ben Bottalico - Blue Group Projects

Trend Lighting collaborates with designers, architects and engineers.

We create breakthrough solutions that help reduce your costs and your carbon footprint.

OptionsConfiguration Options
Downloads

Download these files for Midiled XDM30

Product Standard DatasheetDownload
Installation GuideDownload
Photography
IES
All files
